NorCaLegend · 01-20-2011, 12:02 PM

I have a 1992 LS dash harness I'm putting into my 1991 L, and I need a little help placing some connectors, since I can't figure out where they go. Any input from people who have pulled the dash from an LS would be greatly appreciated.

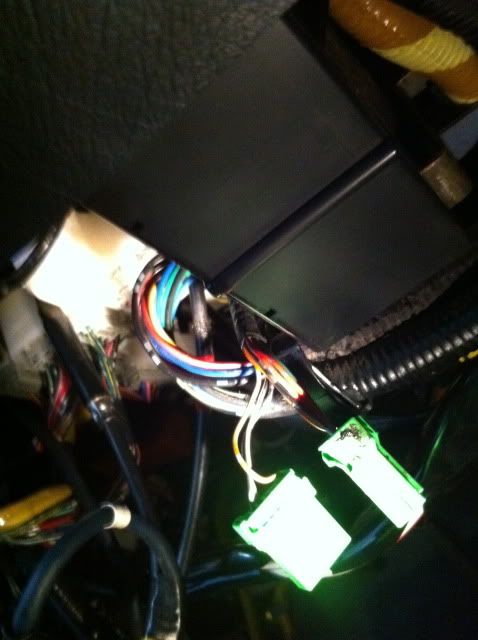

First up, I have these two green male connectors:

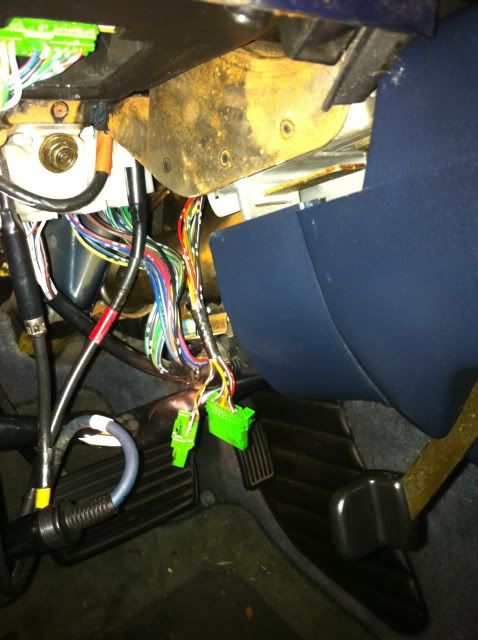

I thought these were for a tilt/telescoping steering column, since they're right by the steering column, but it's a 1992 harness, so it can't be.

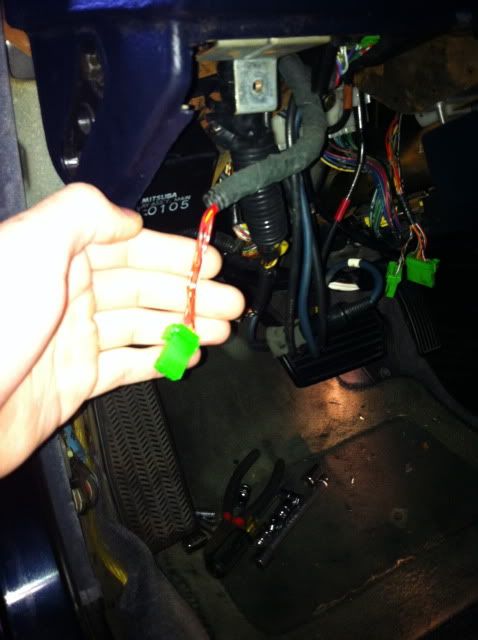

Then there's this one, which I'm 99% sure is for the dimming courtesy light switch, but would still like confirmation:

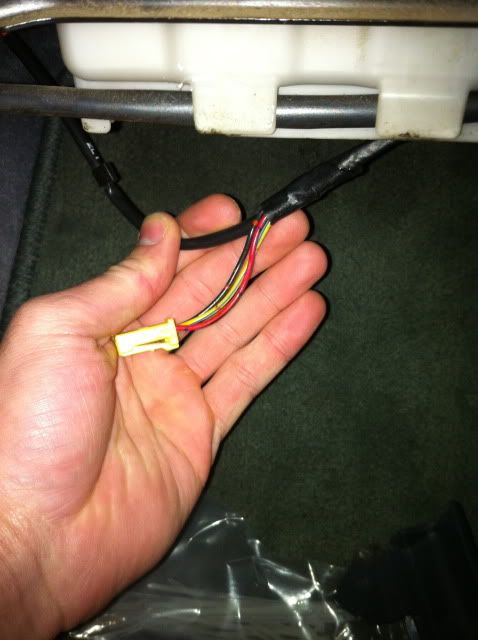

The last one is under the glovebox, and again, I believe it's for the courtesy lights, but i want to be sure before I button the car back up:

Nightshift · 01-20-2011, 03:42 PM

The first pic; the 2 green connectors... I have those also.
I'd like to know what they're for too.
On the '94 GS auto.

WW_

Captain Slow · 01-20-2011, 03:47 PM

When I had my dash replaced I had the same thing: two wire harnesses that didn't connect to anything. It's been at least 6 months and I haven't found anything that doesn't work so they must be redundant.

Icewind · 01-20-2011, 03:55 PM

Could've been for the cell phone?

NorCaLegend · 01-20-2011, 04:40 PM

Well it looks like I didn't miss anything at least. Maybe it is for the cell phone. :dunno: What about the one under the glovebox?

Fatal · 01-20-2011, 07:51 PM

yea i have an L and I have those two unused greed connectors also. Screw em

Boru · 01-21-2011, 04:47 AM

I have a '92 LS and swapped my dash. The harness was re-used. I have the two
"left over" green connectors. I guessed mobile phone also; but, am unsure.
Be careful about the glove box area. The climate control and trunk release connector are the same. Wrong order fries the climate control. The service manual has diagrams and list of connectors and type.

SickSUN71 · 01-21-2011, 05:58 AM

Well there is also a green connecter for the OEM keyless entry.. I'm betting one of those is for that, Unless you have that installed..

Captain Slow · 01-21-2011, 06:23 AM

Quote:

Originally Posted by Boru

I have a '92 LS and swapped my dash. The harness was re-used. I have the two
"left over" green connectors. I guessed mobile phone also; but, am unsure.
Be careful about the glove box area. The climate control and trunk release connector are the same. Wrong order fries the climate control. The service manual has diagrams and list of connectors and type.

Same case. I forgot to mention, I have an LS and I too transplanted my old harness into the new dash. I don't think they're for the keyless entry. If memory serves me well, that has a big 20ish pin connector. I'd put my money on factory phone as well.

Reboticon · 01-21-2011, 04:35 PM

the one you are 99% sure is for courtesy dimming i can confirm 100%.

01-20-2011, 12:02 PM	#1
NorCaLegend Straight OEM Join Date: Oct 2009 Location: Sacramento, CA Posts: 1,758 '91 ACURA Legend Coupe L	My last wiring question for this LS dash swap. Any input is appreciated. I have a 1992 LS dash harness I'm putting into my 1991 L, and I need a little help placing some connectors, since I can't figure out where they go. Any input from people who have pulled the dash from an LS would be greatly appreciated. First up, I have these two green male connectors: I thought these were for a tilt/telescoping steering column, since they're right by the steering column, but it's a 1992 harness, so it can't be. Then there's this one, which I'm 99% sure is for the dimming courtesy light switch, but would still like confirmation: The last one is under the glovebox, and again, I believe it's for the courtesy lights, but i want to be sure before I button the car back up: __________________ - NorCaLegend - 1991 L(S) Type I(I) coupe Build thread: http://forums.acuralegend.org/norcal....html?p=188337

01-20-2011, 03:42 PM	#2
Nightshift Member Join Date: Jun 2009 Location: Houston, TX Posts: 442 Real Name: Wayne	The first pic; the 2 green connectors... I have those also. I'd like to know what they're for too. On the '94 GS auto. WW_ __________________ '12 GMC Sierra SLT Crew Cab, '02 Lexus SC430 '94 LS 6-Speed Coupe, '94 GS 6-Speed '95 GS Automatic (Formally lukin3) '72 Buick Skylark Convert, Frame Off Resto

01-20-2011, 03:47 PM	#3
Captain Slow Ken Join Date: Jun 2009 Posts: 1,838	When I had my dash replaced I had the same thing: two wire harnesses that didn't connect to anything. It's been at least 6 months and I haven't found anything that doesn't work so they must be redundant. __________________

01-20-2011, 04:40 PM	#5
NorCaLegend Straight OEM Join Date: Oct 2009 Location: Sacramento, CA Posts: 1,758 '91 ACURA Legend Coupe L	Well it looks like I didn't miss anything at least. Maybe it is for the cell phone. :dunno: What about the one under the glovebox? __________________ - NorCaLegend - 1991 L(S) Type I(I) coupe Build thread: http://forums.acuralegend.org/norcal....html?p=188337

01-21-2011, 04:47 AM	#7
Boru Member Join Date: Jun 2009 Posts: 384	I have a '92 LS and swapped my dash. The harness was re-used. I have the two "left over" green connectors. I guessed mobile phone also; but, am unsure. Be careful about the glove box area. The climate control and trunk release connector are the same. Wrong order fries the climate control. The service manual has diagrams and list of connectors and type. __________________ 02539

01-20-2011, 03:55 PM	#4
Icewind Member Join Date: Nov 2010 Posts: 209 '92 ACURA Legend Sedan LS	Could've been for the cell phone?

01-20-2011, 07:51 PM	#6
Fatal Reborn Join Date: Jun 2009 Location: Ocala, Florida Posts: 1,356 '95 ACURA Legend Sedan L	yea i have an L and I have those two unused greed connectors also. Screw em

01-21-2011, 04:35 PM	#10
Reboticon Lord Of The Clunker Join Date: Jun 2009 Posts: 4,211 '71 FORD THUNDERBIRD '88 HONDA CRX '90 ACURA INTEGRA '92 ACURA Legend Sedan L '95 ACURA Legend Sedan LS Real Name: Ze Orderly?	the one you are 99% sure is for courtesy dimming i can confirm 100%. __________________ 88 CRX DPFI->B18( on hold) Minty Legend + 3.5 for $3500?(On Hold) 7.0L and 500ftlb, making more power the oldfashioned way! My Home Garage(Code Enforced!)
